Our Products

Category: Public Safety and surveillance

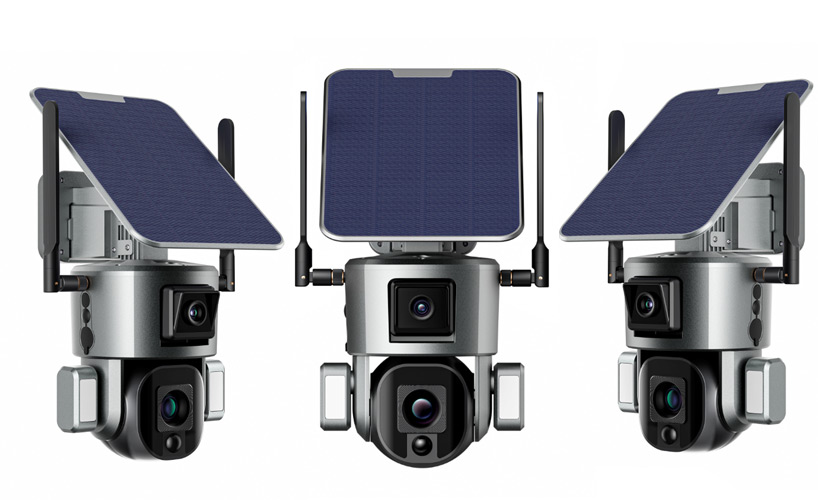

244 ZAP1 Surveillance and Traffic Solar systems for outdoor video surveillance applications. The product adopts all-in-one design, including a solar panel on the top and rechargeable batteries built-in the camera, therefore it offers completely wire-free installation. Furthermore, the product utilizes 2 separate cameras offering optical zoom capability, this design is called “Dual lens”. It’s a 244 ZAP1 Surveillance and Traffic Solar systems supporting 355-degree pan and 105-degree tilt rotation, the produce can offer panoramic view that covering a large area.

Features

• Easiest programming in the industry
• AMBER Alert ready
• Optical zoom lens built-in, the zoom lens can be selected between 2.8~12mm (4x optical zoom capability) and 5~50mm (10x optical zoom capability)
• each lens offers 2K resolution video by utilizing 12-megapixel CMOS image sensors, the total resolution reaches up to 4K.
• Easy to tow and deploy quickly by one person
• Maintenance-free AGM batteries

Setup

• Low weight, can be towed by most vehicles
• Standard tow hitch for easy transport
• Drawbar can be removed for theft protection
• Sign on telescoping tower rotates 360 degrees for optimal positioning
• One person can easily raise, lower and rotate the sign

Operation

• Customize messages for each application
• Intuitive full-color touchscreen controller is easy to use
• Onboard controller eliminates the need for an external computer or controller
• Preprogrammed text messages, symbols and graphics simplify message creation
• Easily center each line of text
• Optical lenses and sunshades increase visibility and improve performance
• Internal clock facilitates built-in schedule programming
• Multi-level password protection limits access to control software
• Control box can be locked to prevent unauthorized access

Power System

• Energy-efficient operation results in long run times
• Maintenance-free AGM batteries
• Solar panels charge batteries automatically without intervention
• Backup AC battery charger included
• High-security battery box has hidden hinges and dual puck-locks

Maintenance

• Heavy-duty construction reduces maintenance
• Stainless steel hardware where practical
• Durable powder-coat finish resists the elements
• Individual display modules can be replaced easily
• Replaceable bolt-on fenders

Standards Compliance

• NTCIP compliant
• Meets NEMA TS 4-2005 Section 2 for ambient temperature, vibration, shock, electro-static discharge (ESD), and radio interference

Category: Public Safety Signs

Compact Speed Trailer for Public Safety has the largest portable speed sign available today. Designed for public safety and law enforcement agencies, the giant display shows vehicle speed in bold 26-inch characters, warning motorists to slow down by flashing their excessive speed. The trailer's see-through design puts pedestrians in view, improving their safety — particularly in high-risk areas. The automated solar charging system provides long run times. For public safety models, we upgrade many standard features for an enhanced degree of durability and reliability.

Features

• Extra-large full-matrix display
• 26-inch LED characters with optical lenses and sun shades for superior visibility
• Flashing red-and-blue LED lights
• Selectable speed-limit setting
• Clearly displays speed up to triple digits
• Configurable speed units, mph or km/h
• Configurable flashing excessive-speed message
• 24×30-inch regulatory speed-limit sign included
• Speed limit sign has easily changeable speed-limit numbers
• Speed limit sign rises to legal height for increased visibility
• Changeable digits for speed limit sign stored in battery box
• Approach-only K-band radar measures speeds from 5 to 150 mph (8 to 240 km/h) at a distance of up to 1000 feet (305 meters)
• Radar unit is FCC approved and CE compliant
• Streamlined see-through design
• Compact and easily portable, 5-minute setup
• Battery powered and solar charging
• Silent operation
• Under 900 pounds (400kg), can be towed by most vehicles
• Drawbar can be removed for added security and smaller footprint
• Standard 2-inch ball coupler tow-hitch
• Locking control box and battery compartment

Category: Surveillance Systems

The KWS360 SOLAR SURVEILLANCE TOWER is an all-in-one portable video solution. Compact and portable for easy transport and deployment, the system can be rapidly deployed by a single person in less than 10 minutes. The system is equipped with dual pan-tilt-zoom infrared cameras that are designed specifically for outdoor use for durability and reliability. Wireless communication provides the features you expect for remote monitoring and control.

Features

• Secure job sites and other locations
• Deter theft and protect property
• Promote safety
• Deploy in less than 10 minutes
• Easily tow with most vehicles

Camera Control

• Live video stream via 4G cellular or Wi-Fi
• Multiple device connectivity
• Zero latency PTZ control
• License-free PC software
• Remote control app for iOS and Android mobile devices

Camera System

• Two outdoor IP-network cameras
• Cameras are infrared (IR) day/night PTZ dome style with 360° rotation
• Electronics integrated in primary camera housing
• Video resolution of 1028×596 or HD 1080p
• 23x optical zoom / 16x digital zoom
• Onboard digital recording to solid-state NVR
• 2 TB of onboard recording storage capacity
• GPS location
• Cellular plan included
• Quick-connectors and lock-pin for easy installation
• Built-in video analytics
• 20-foot telescoping vertical tower

IR Cameras

• Built-in IR illuminator for nighttime use
• 160-foot (50-meter) IR Illumination
• 1080p HD resolution
• 23x optical zoom
• 360-degree pan, –5 to 90-degree tilt
• Designed for use in no-light/low-light scenarios

Communications

• High-speed 4G LTE cellular modem with built-in GPS
• 2-year cellular plan included, alternative plans are also available
• LAN Wi-Fi connectivity, 2.4 or 5.8 GHz

Category: Surveillance Systems

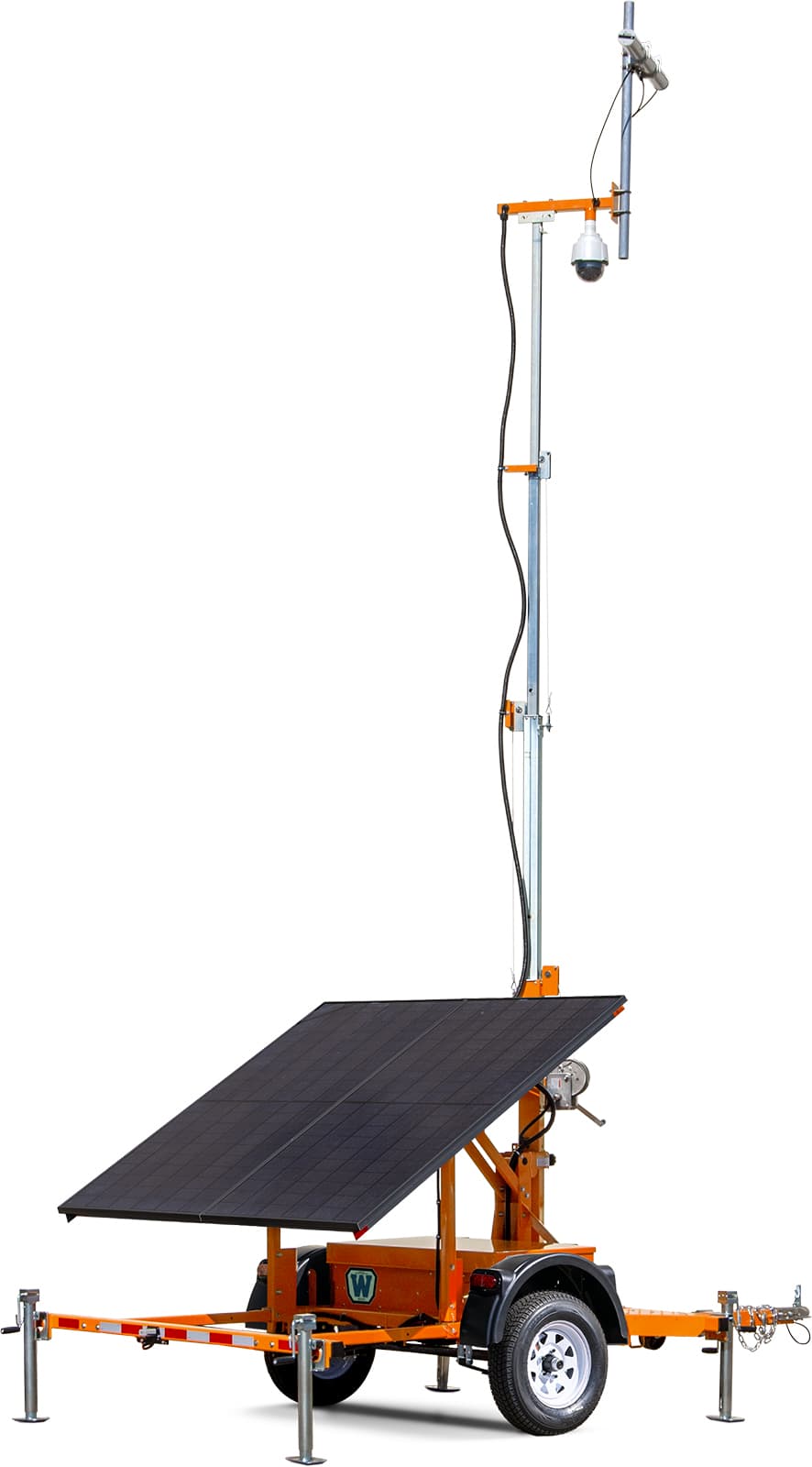

The Solar Surveillance DOT System is a small-frame camera trailer with a 20-foot mast and optional speed-detection radar. This portable system is designed for work zones and construction areas, providing remote live video from its pan-tilt-zoom (PTZ) dome camera and statistical data from a radar sensor. Energy-efficient components and the solar-charging power system provide year-round autonomous operation in most geographic locations.

Features

• Engineered specifically for DOTs and transportation agencies
• Side-fire radar sensor is optional
• Radar data includes volume, speed, occupancy and classification
• 20-foot vertical tower rotates nearly 360 degrees
• Year-round autonomous operation

Camera System

• One outdoor IP-network camera
• Axis day/night PTZ dome style camera with 360° rotation
• Full remote control of pan, tilt and zoom functions

Traffic Sensor

• Multi-lane, side-fire sensor records traffic volume, speed, occupancy and classification (optional equipment)

Communications

• High-speed 4G LTE cellular gateway (requires cellular plan)
• Multiple antenna types for the signal power and distance you need

Power System

• Battery powered
• Maintenance-free sealed batteries
• Solar-based charging system charges batteries automatically without intervention
• Solar array tilts from horizontal to nearly vertical for optimal sun exposure
• Charging system shuts down when batteries are fully charged, preventing damage
• Unique system allows battery charging with solar panels or commercial power

Category: Surveillance Systems

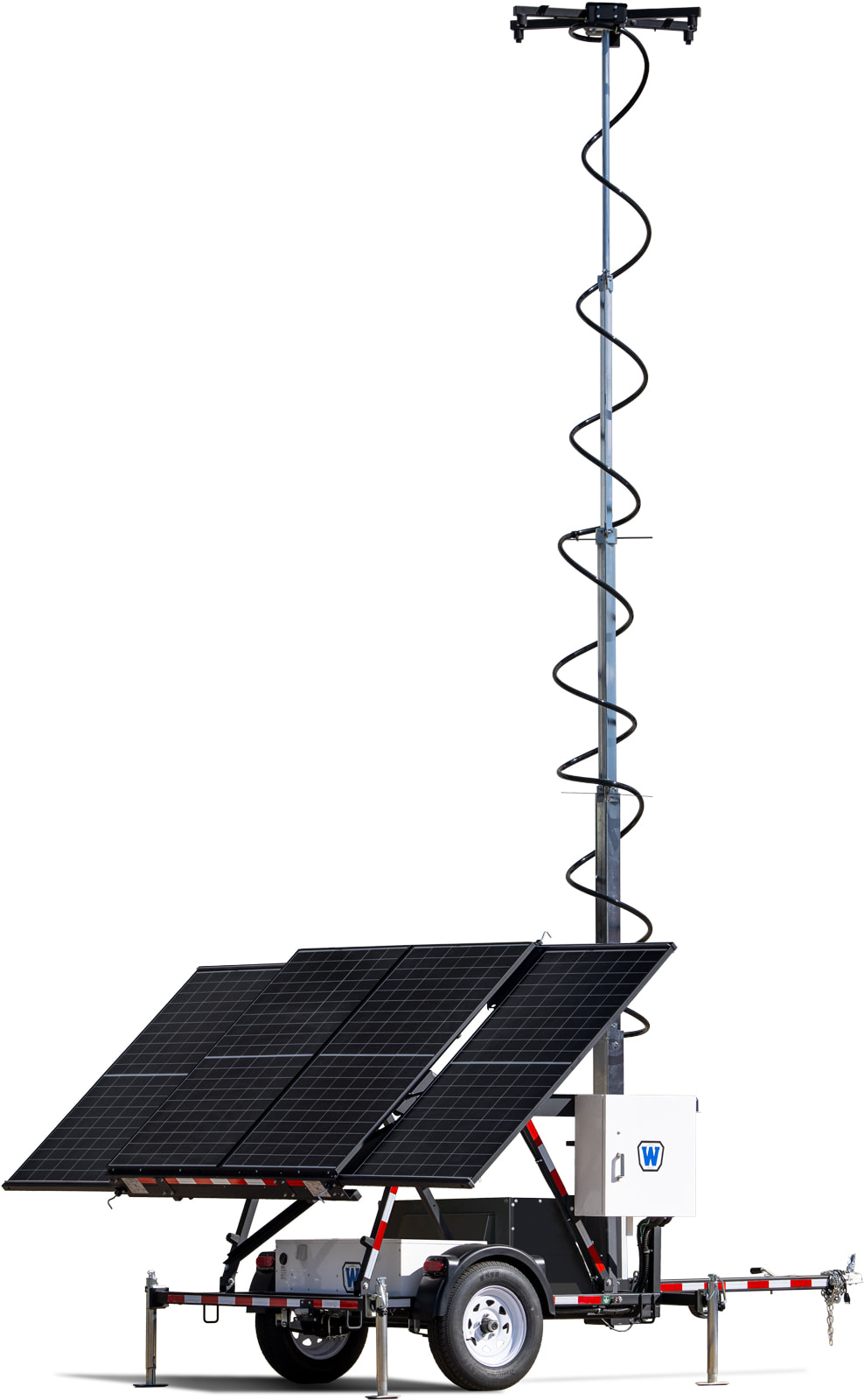

Hybrid Integrator Trailer adds backup power to the long list of features provided by our solar-only integrator trailers. A diesel engine charges the batteries when needed, providing even more power for the gear you install. This versatile system lets you combine cameras, lights, recording devices, audio systems, communications, RF radios and more — anything needed for your application.

Features

• Add your own electronics
• Built-in power system
• Sound-attenuated diesel power backup
• Rugged trailer built for integrators
• Deluxe remote power management system

Base Platform

• All-welded structural steel frame
• Folding drawbar for compact storage
• Telescoping 24-foot tower rotates nearly 360 degrees
• Manual hand-operated tower winch
• Multi-pendant mount with four arms includes 1.5-inch NPT fittings, accepts up to six arms
• Nycoil cable protection
• Five Cat 5e cables and one 16/2 power cable
• NEMA-rated enclosure for electronics and controls
• Onboard 24Vdc power system
• AC power inverter

Control Box

• Electronics are housed in a lockable weathertight enclosure
• Enclosure interior is back-plate ready for installation of your electronics
• Aluminum enclosure measures 24 inches square and 10 inches deep
• Three-point latch accepts user-supplied padlock

Category: Surveillance Systems

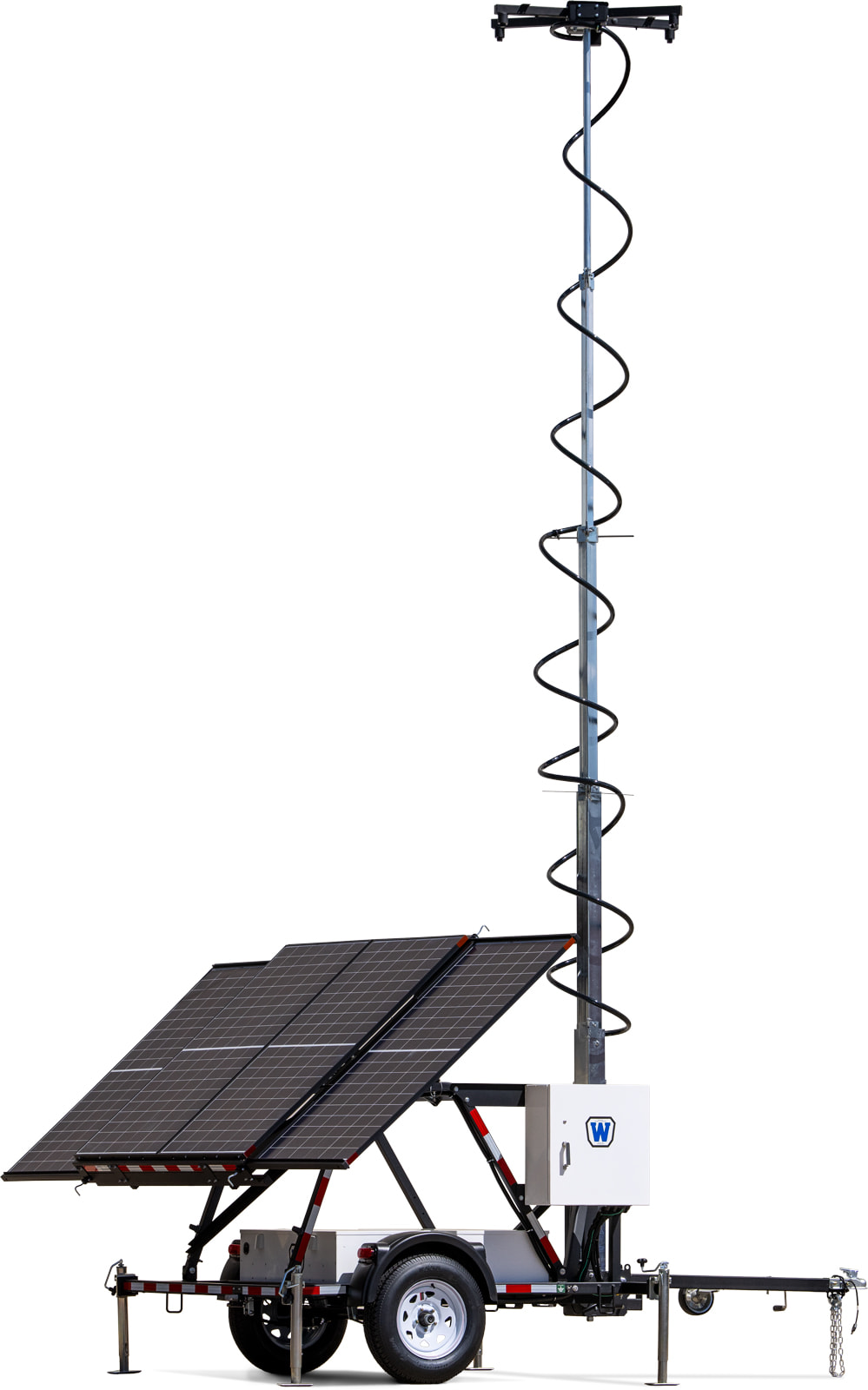

The Integrator Trailer provides a robust, dependable platform for installing your own gear to keep your job site secure. This versatile system lets you combine cameras, lights, recording devices, audio systems, communications, RF radios and more — anything needed for your application. System power is supplied by batteries, which are charged automatically by the solar-based charging system.

Features

• Add your own electronics
• Built-in power system
• Rugged trailer built for integrators
• Silent operation
• Environmentally friendly

Base Platform

• All-welded structural steel frame
• Folding drawbar for compact storage
• Telescoping 24-foot tower rotates nearly 360 degrees
• Manual hand-operated tower winch
• Multi-pendant mount with four arms includes 1.5-inch NPT fittings, accepts up to six arms
• Nycoil cable protection
• Five Cat 5e cables and one 16/2 power cable
• NEMA-rated enclosure for electronics and controls
• Onboard 24Vdc power system
• AC power inverter

Control Box

• Electronics are housed in a lockable weathertight enclosure
• Enclosure interior is back-plate ready for installation of your electronics
• Aluminum enclosure measures 24 inches square and 10 inches deep
• Three-point latch accepts user-supplied padlock
